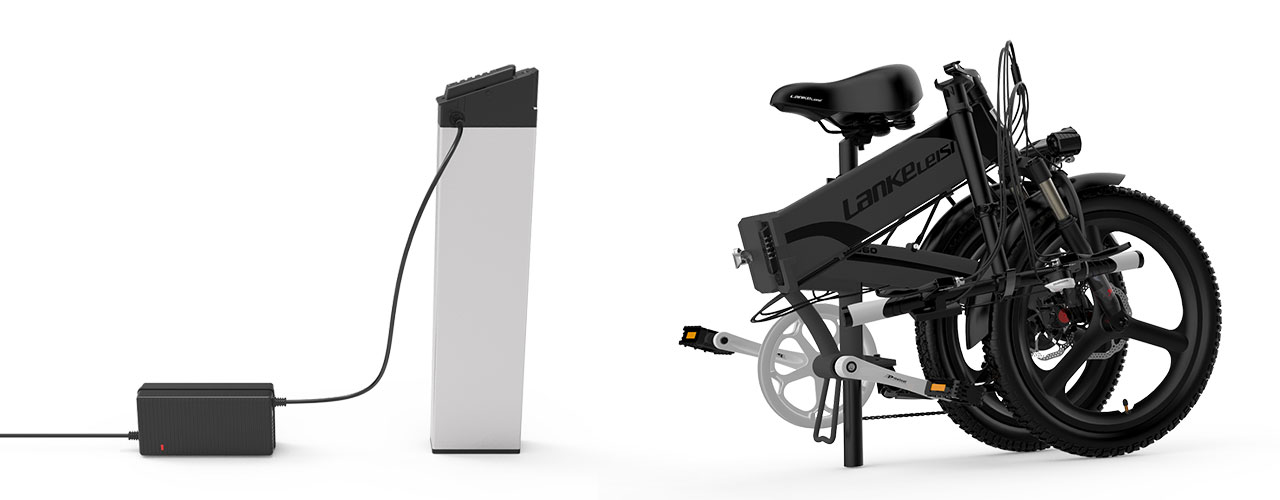

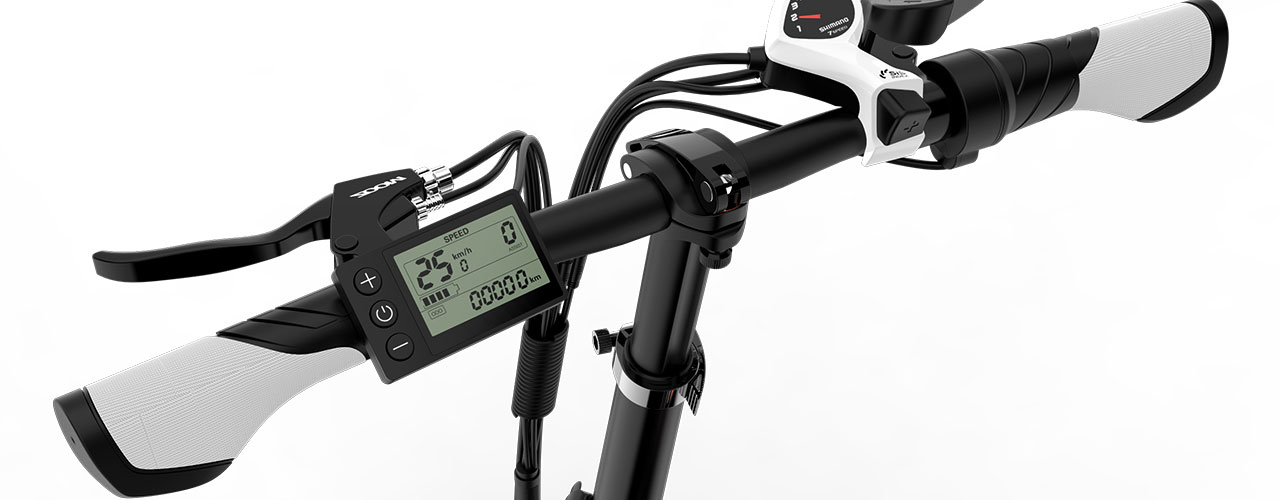

FEATURE OF PRODUCT Install smart meter, new interactive interface, LCD display, integrated gear switch, ride data viewing, set power output, at a glance ip65 waterproof and dustproof quality and reliable Magnesium alloy integrated wheel motor, good waterproof effect, DC brushless, which can reduce the loss and increase the cruising range while saving energy and mute the same energy consumption. It has a 400w high-performance rear wheel hub motor with rapid power. It adopts 18650 power battery structure, hides the inside of the frame, dustproof and waterproof, powerful output, stable at all times, independent module, and has a cruising range of 120KM. The front wheel adopts a double oil spring shock absorber system, which gives the rider a stronger comfortable experience during the bumpy driving process. Disc brakes, front and rear disc brake dual systems, S disc brake discs, fast heat dissipation, automatic power cut off when the brake handle is pressed, and emergency braking can also brake efficiently and smoothly. Optional imported Shimano 7-level speed change system, Taiwan Haomeng front 52T large chainring, front 1 and rear 7-level classic matching, sis positioning is durable, 7-speed greatly improves riding fun. ProductSpecifications 48V400W rear brushless motorBacklit LCD Display

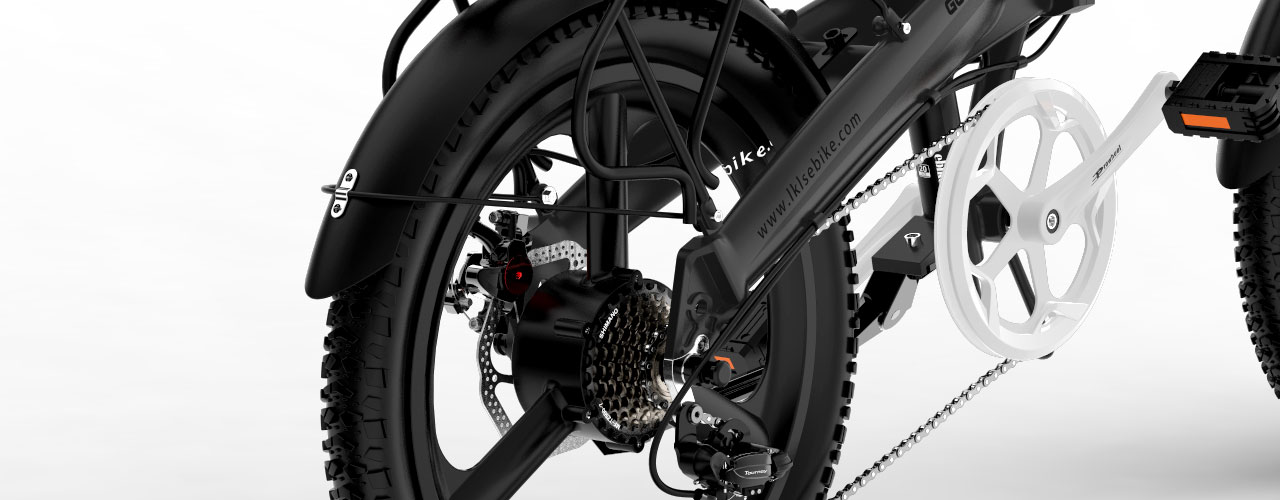

Motor
48V 12.8AH Lithium Battery

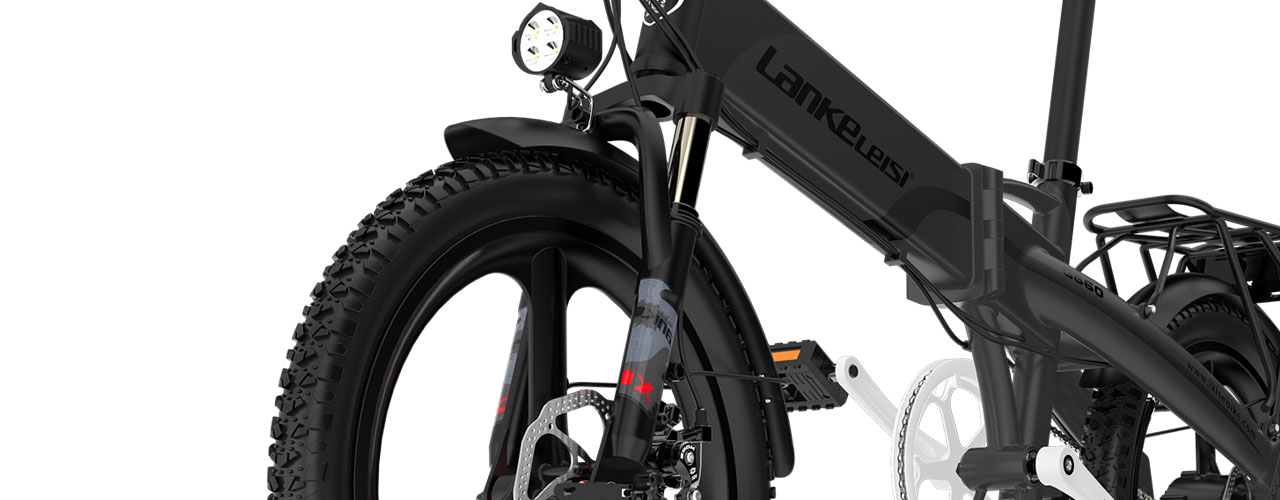

front fork

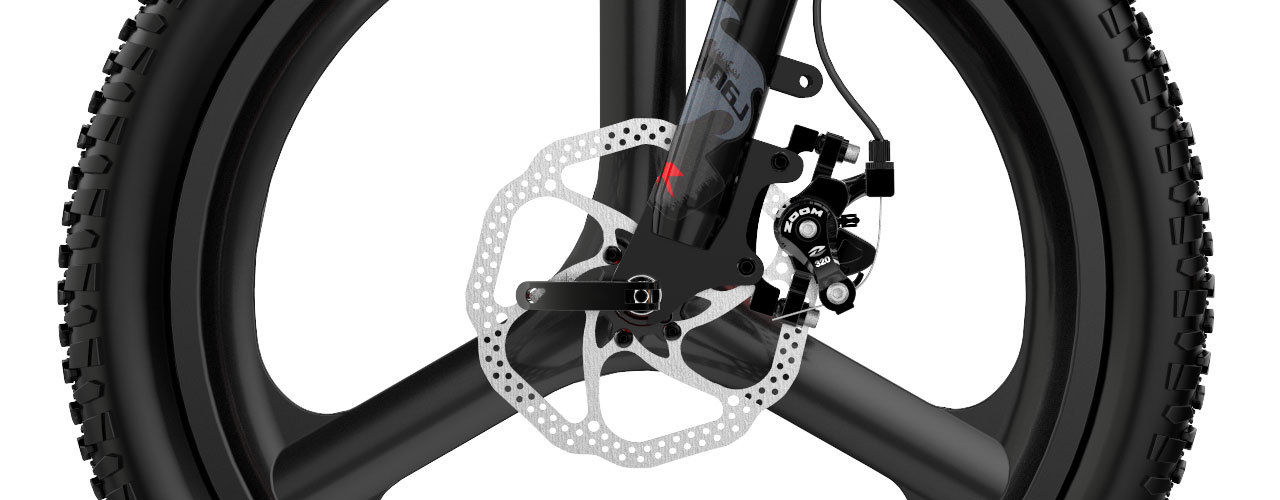

Brake

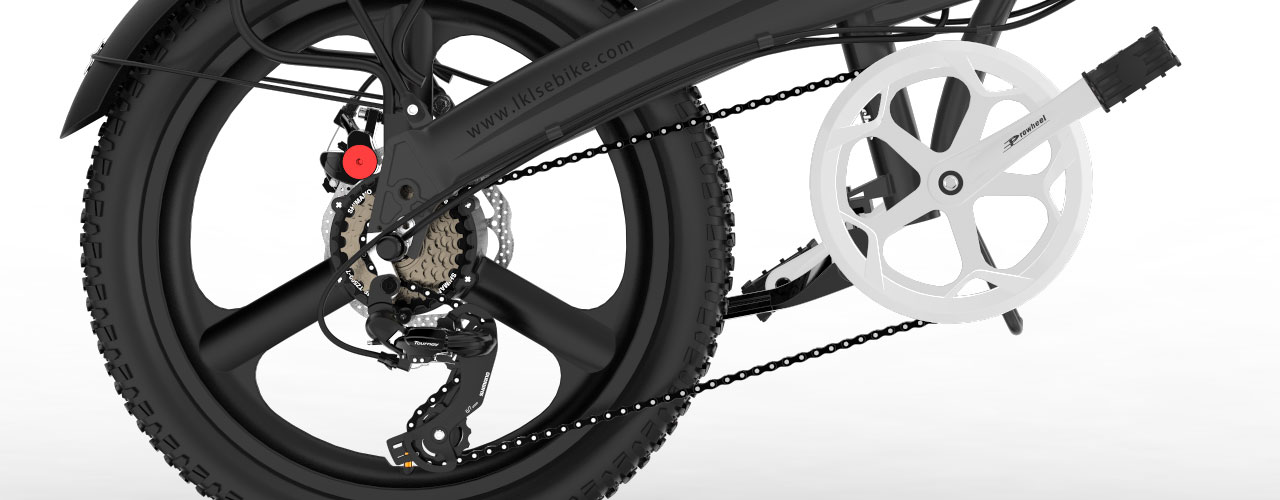

Variable Speed

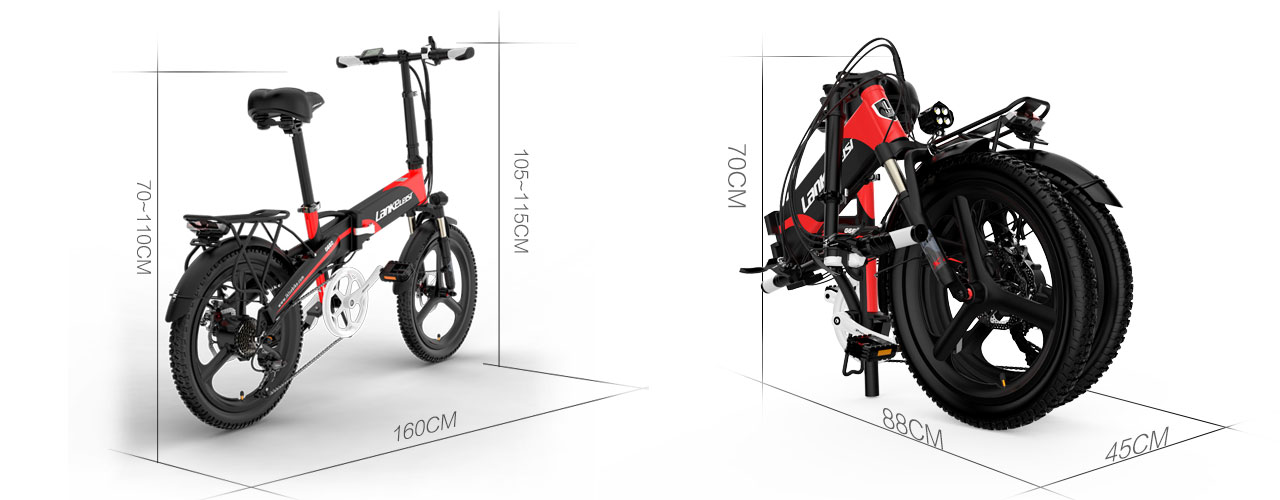

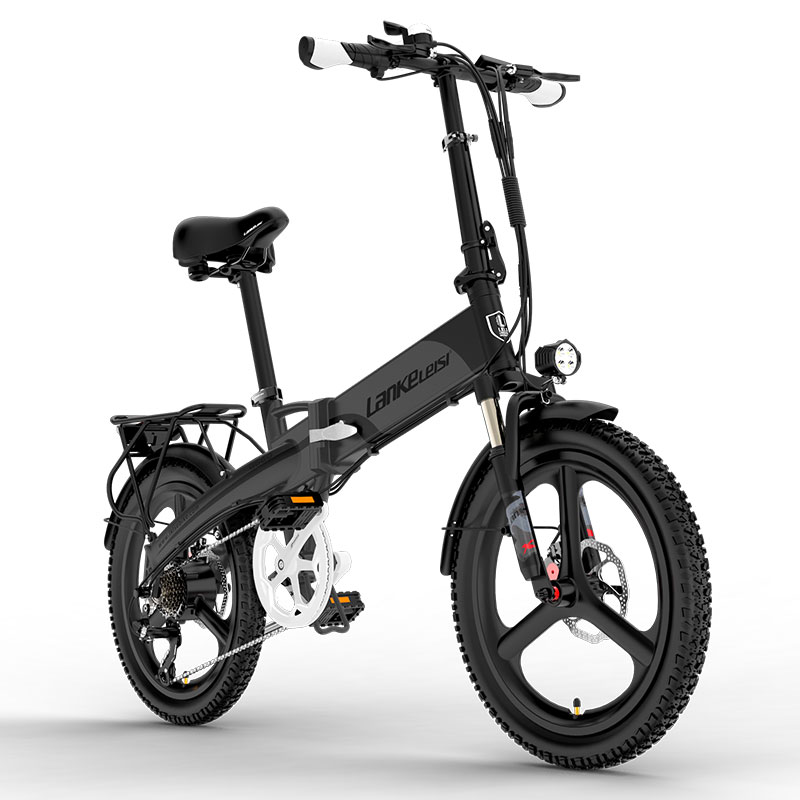

vehicle size
Electronic control system Mechanical configuration Battery 48V12.8AH Li-ion battery front fork Oil spring suspension front fork motor variable speed Shimano TX50-7 shifter & TY300 rear derailleur monitor Multifunctional LCD Display Brake system Mechanical Disc Brake controller vector controller tire rubber tires headlight High Brightness LED Lights handlebar Aluminum alloy ultralight handlebar power assist sensor 12-point speed sensor aid seat post Height-adjustable seat post charger 3A smart charger (customized according to country) seat Comfortable sports seats line Plug type waterproof cable crankset Aluminum alloy crank 52T crankset Product performance Specification Pure electric mileage 50-60KM Vehicle size 160CM*105-115CM*70-110CM Auxiliary mileage 100-120KM frame 20" high strength and lightweight aluminum alloy frame speed 33~35KM/H tire size 20*1.95 charging time 5-6H weight 21.5KG mode 5+1 assist mode, cruise control load 150~200KG other Customizable battery capacity, motor power
ProductSpecifications
Electronic control system | Mechanical configuration | ||
Battery | 48V12.8AH Li-ion battery | front fork | Oil spring suspension front fork |
motor | 48V400W rear brushless motor | variable speed | Shimano TX50-7 shifter & TY300 rear derailleur |
monitor | Multifunctional LCD Display | Brake system | Mechanical Disc Brake |
controller | vector controller | tire | rubber tires |
headlight | High Brightness LED Lights | handlebar | Aluminum alloy ultralight handlebar |
power assist sensor | 12-point speed sensor aid | seat post | Height-adjustable seat post |
charger | 3A smart charger (customized according to country) | seat | Comfortable sports seats |
line | Plug type waterproof cable | crankset | Aluminum alloy crank 52T crankset |
Product performance | Specification | ||
Pure electric mileage | 50-60KM | Vehicle size | 160CM*105-115CM*70-110CM |
Auxiliary mileage | 100-120KM | frame | 20" high strength and lightweight aluminum alloy frame |
speed | 33~35KM/H | tire size | 20*1.95 |
charging time | 5-6H | weight | 21.5KG |
mode | 5+1 assist mode, cruise control | load | 150~200KG |
other | Customizable battery capacity, motor power |
