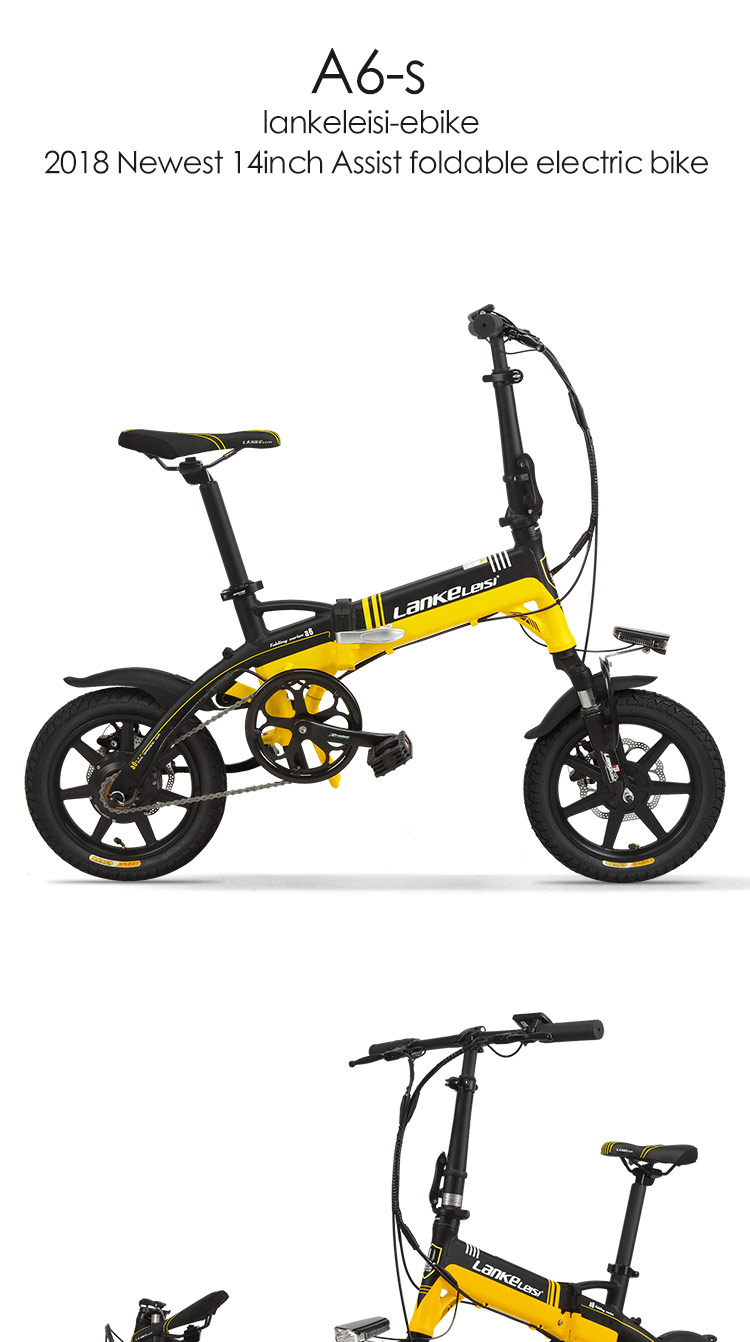

A6 Electric Bike - Elite Edition
No.: A6 Elite Edition
Voltage: 48V
Speed of travel: 20km/h
Product style: Folding
Wheel size: 14 inches
For people: adult
Product Details

Main configuration table


Model: A6 Elite Edition


Wheel size: 14 inches


Frame size: 14 inches


Color: Black Yellow Black Blue White Blue Black and White


Net weight: 17.5kg


Frame: 6061 aluminum alloy, GIT welding


Handlebar: 6061 aluminum alloy, 25.4*570mm


Car clip: GINEYEA kc80-40.8mm


Front fork: aluminum shoulder oil spring fork


Crankset: Prowheel aluminum alloy crank square hole 46T steel tooth


Flywheel: 14T


Chain: KMC


Central axis: kenli square hole Palin bearing


Brake brake: ZOOM DB-220 mechanical disc brake


Rims: Aluminum alloy wheel 14 inches


Tire: KENDA 14*2.215


Set: 130*22.2 rubber handle


Seat: vinyl top cover, liner PU


Pedal: LP folding bike plastic pedal


Line: lankeleisi


Accessories: parking rack


Electric configuration:


Cycling mode: electric boost 5 gear


Pure human riding


Pure electric riding


Endurance: power life 50-60km


Pure battery life 25-30km


Maximum speed: ≤25km/h


Load capacity: 150kg


Battery: 18650 lithium battery 36v8.7ah


Charging time: 5~7h


Charger: Overvoltage, overcurrent protection, etc.

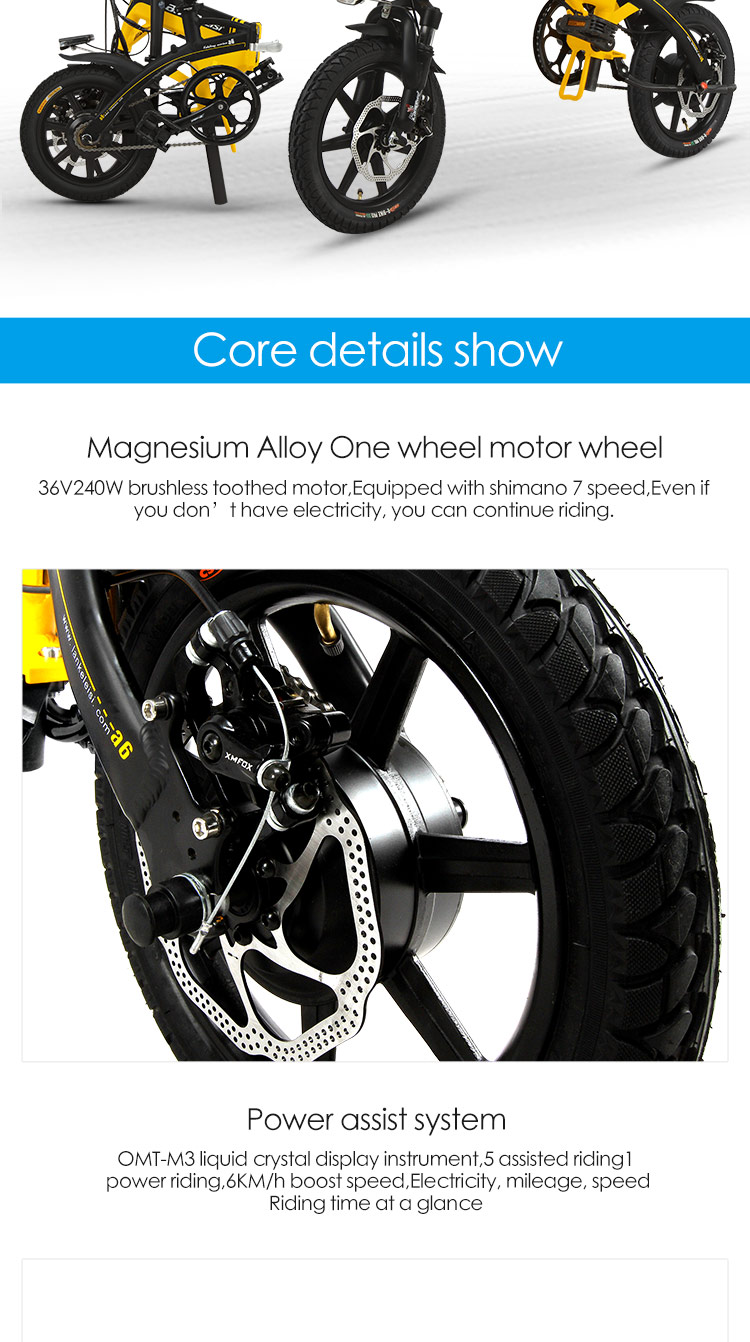

Motor: rear drive 48v250w brushless and toothed, waterproof grade IP54


Instrument: OMD-M3 LCD data display function, setting function: Waterproof rating: IP51


Booster: KDS left-mounted 12-point Hall-intensive speed sensor Waterproof rating: IP51


Brake power off function: ZOOM brake power off


Wire connector: All cables are waterproof quick connectors
